Box-Joint Shelf Cabinet PDF plan

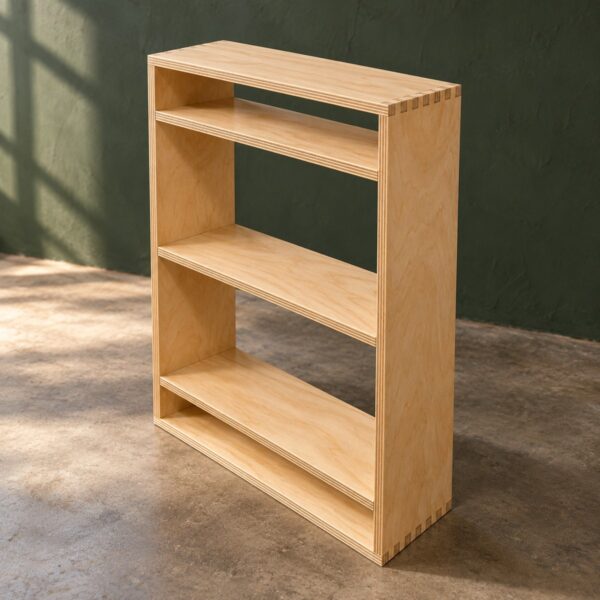

A compact open cabinet with box-jointed corners, three housed shelves and shallow openings at the top and bottom.
What you receive
- Branded PDF with a measured overview and blank cut list.
- Source joint settings, connection schedule and editorial assembly guide.
- Original editable GrainDraft model attached inside the PDF.
Before you build
Wall fixings and a hanging system are not included in the source. The name used here describes the cabinet; it does not imply that concealed mounting hardware is supplied.
Source dimensions are retained in the attached model. Visible measurements are rounded to no more than two decimal places. The hero image is an AI-generated visualization, not a photograph of a finished test build. Technical drawings and source CAD govern construction. This edition has not been physically test-built.
Digital download
PDF only; no physical product or materials. After successful payment, download the PDF from the order confirmation and order email. A desktop PDF reader may be needed to access the attached editable source model.
Design credit
Adapted from Floating shelf by GrainDraft, licensed CC BY 4.0. The Sawdust Playbook provides the branded layout and editorial adaptation. Credit does not imply endorsement.
